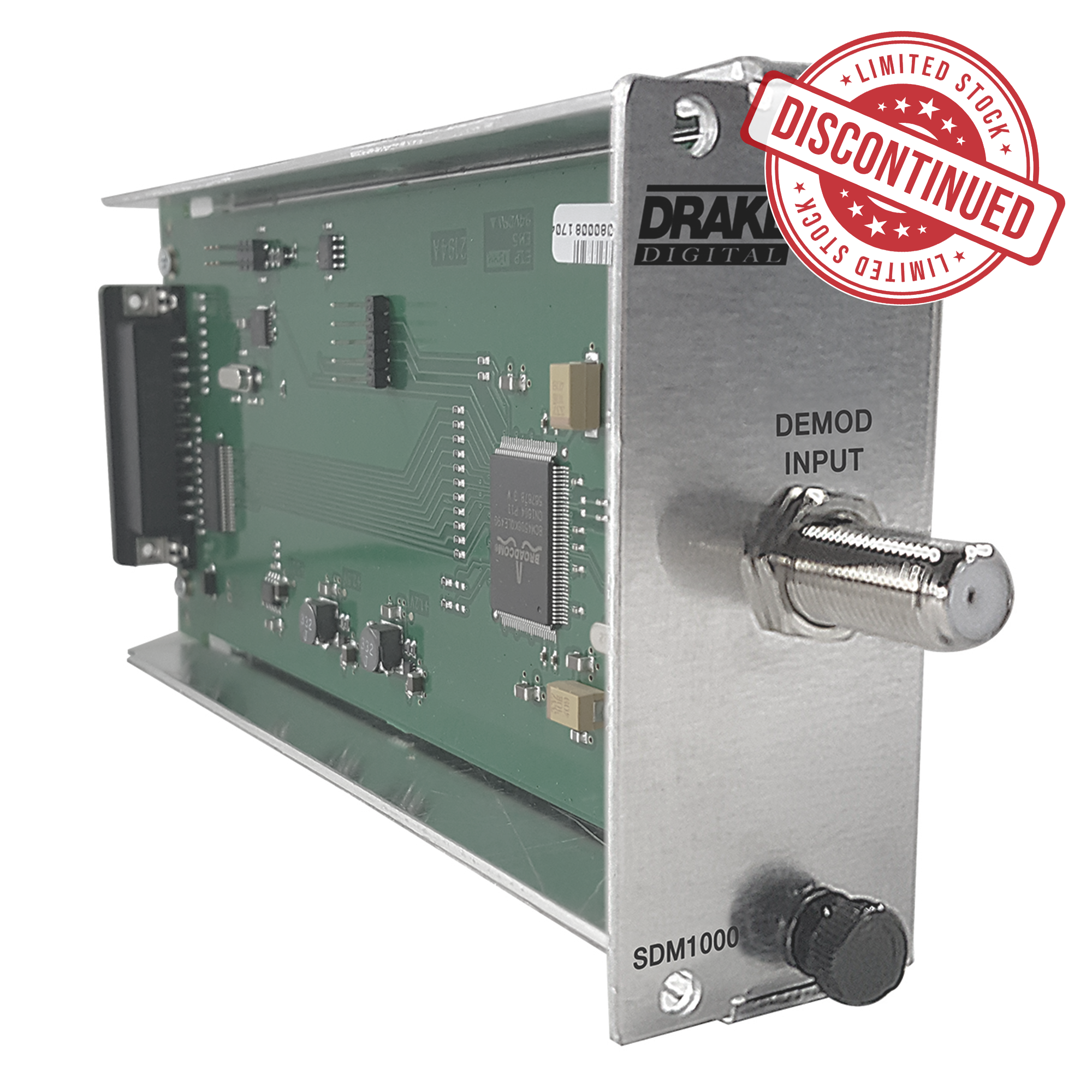

Drake SDM1000

Drake SDM1000

Satellite Demodulator Module


Product Overview

The Drake SDM1000 is designed for use in the MEQ1000 Multiplexing Hybrid QAM Modulator to provide a QT Plus transcoding solution for the Shaw’s Anik G1 Satellite. The SDM1000 is designed to handle the 8PSK turbo FEC and higher data rate of Anik G1.

The SDM1000 demodulates QPSK, and 8PSK, has a 950-2,150 MHz wide-band tuner, and can process MPEG-2 or MPEG-4/H.264 clear or encrypted program streams.

Key Features

  • Demodulates QPSK, 8PSK
  • DVB-S2, DCII, advanced Turbo FEC modes
  • 950 to 2,150 MHz wide-band tuner
  • Can process MPEG-2 or MPEG-4/H.264, clear or encrypted program streams

Compatible with:

1002511B – MEQ1000B – Multiplexing Hybrid QAM Modulator

Additional information

Weight 1 lbs
Dimensions 8 × 1.5 × 3.25 in

Product Downloads

Firmware Updates

Learn more about downloading the latest updates from our Firmware FTP

or subscribe to receive future
update notification emails.
