CableCARD® Input Module


Product Overview

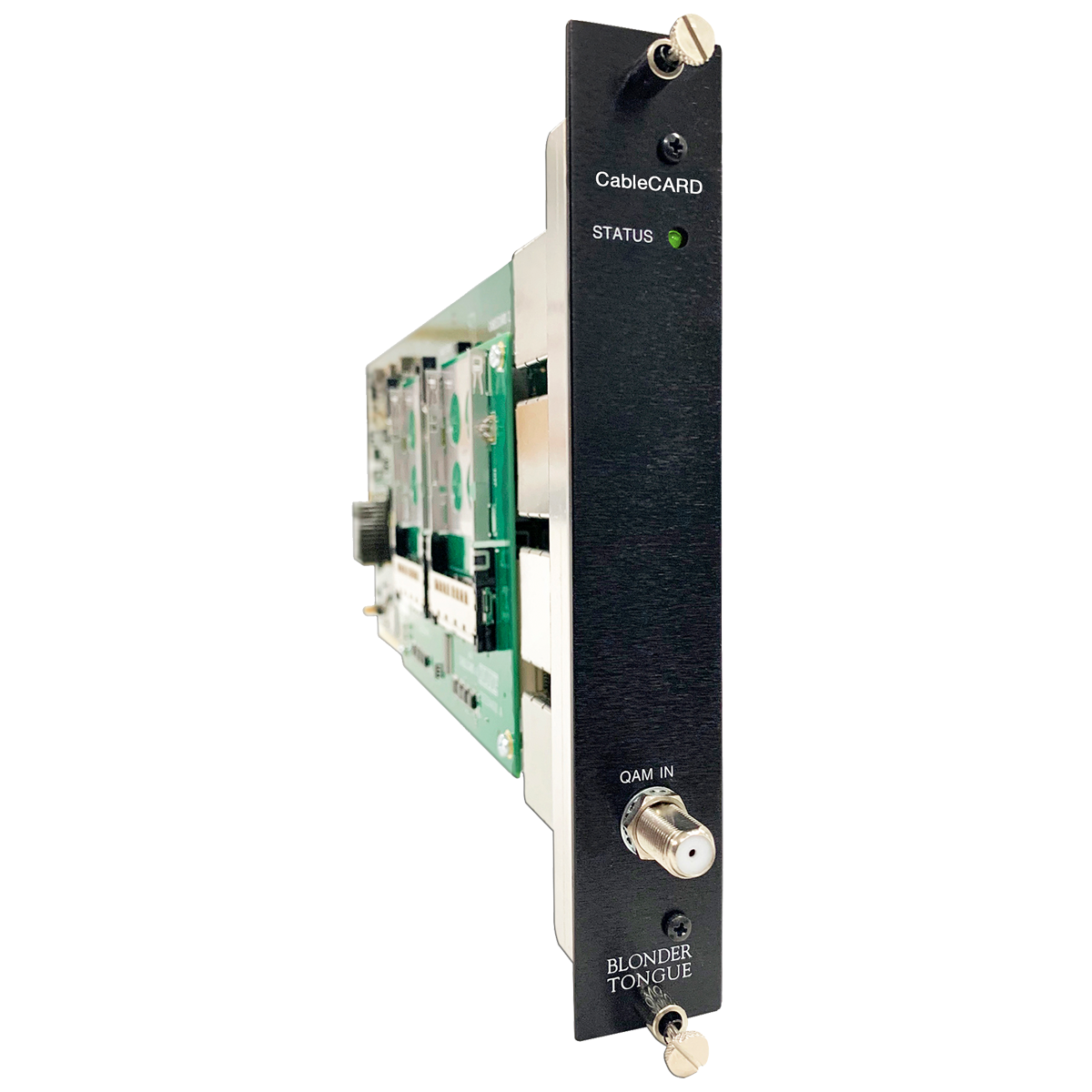

The NXG-CCQD-24 QAM input module is ideal for decrypting HD or SD programs from a Cable or Telco TV service provider. Leveraging CableCARD® technology , it provides the highest performance, reliability, and dependability with its multiple full-band-capture QAM tuners and four CableCARD slots.

With its wide frequency range of 54 to 1002 MHz, it can ingest up to 24 programs from the incoming cable system. The decrypted content is then sent to the NXG mainframe backplane for additional processing and/or output.

The module is compatible with MediaCipher, PowerKey, and NDS encryption, allowing for easy installation of customer-provided CableCARDs. This input module is a great way to ensure that you get the most out of your TV service provider.

Key Features

  • Supports CableCARD® compatibility with Media-Cipher, PowerKey, and NDS applications
  • Supports 24 programs per module (6 programs per CableCARD)
  • Supports 54 to 1002 MHz input frequency range
  • Provides EAS support via SCTE-18 to force-tune across all channels

Additional information

Weight 2 lbs
Dimensions 15.5 × 1.15 × 7.0 in
Power Consumption:


Product Downloads

Firmware Updates

Learn more about downloading the latest updates from our Firmware FTP

or subscribe to receive future
update notification emails.
