2 Channel HDMI to SPTS/SRT/QAM Encoder

SKU: 6569 Categories: , Tags: ,

Product Overview

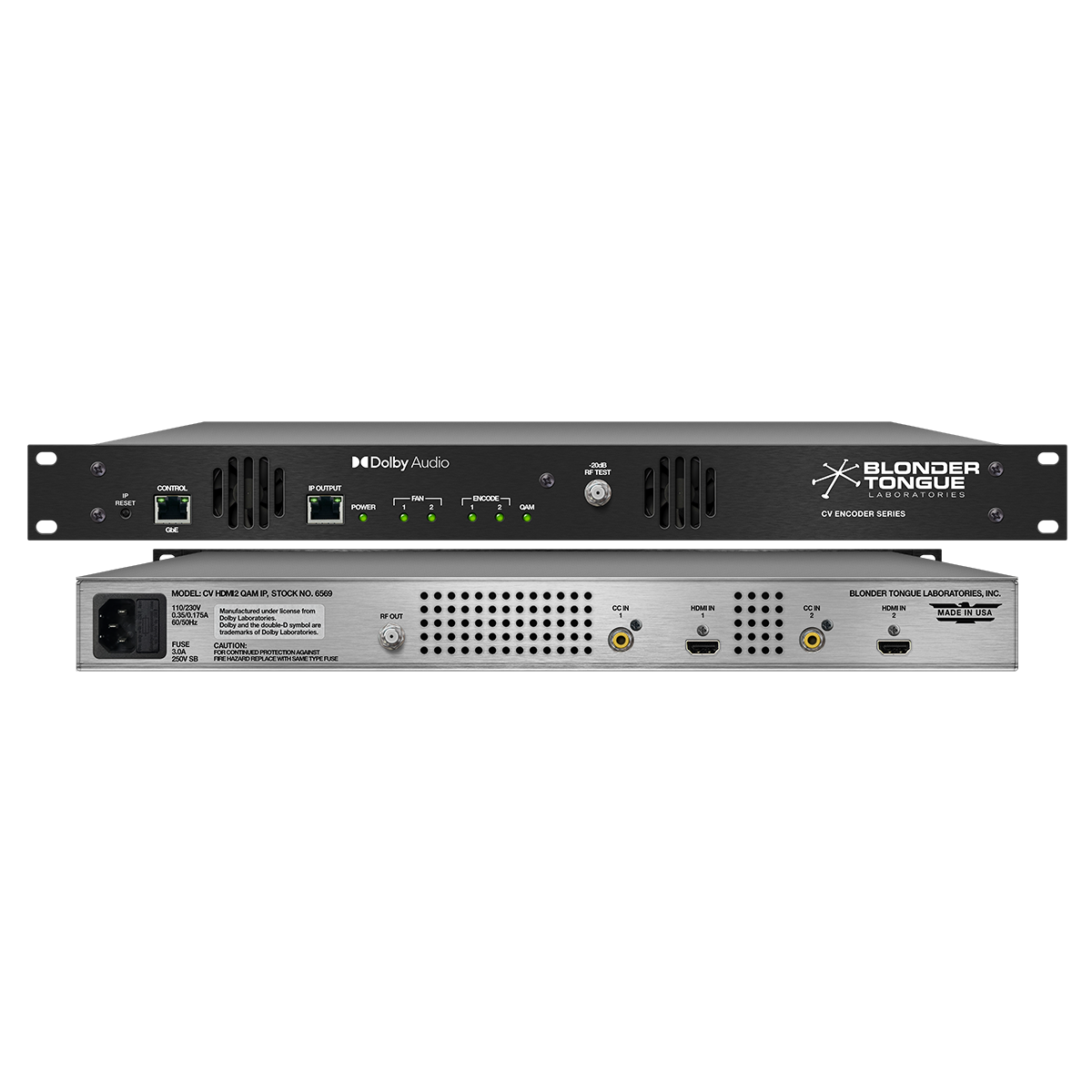

The CV HDMI2 QAM IP is a dual channel encoder/player that accepts up to two (2) HD or SD programs from two (2) rear panel HDMI input connectors or it can loop a video file from its internal file store. The unit multiplexes and modulates both HDMI inputs into a single QAM output channel, including PSIP for direct digital TV display, which extends to digital signage applications.

The CV HDMI2 QAM IP offers encoding options for MPEG-2, H.264/MPEG-4 (AVC), or H.265 (HEVC) at all major resolutions ranging from 480i to 1080p60. The encoder has the capability to output two (2) SRT streams or Unicast/Multicast SPTS. In addition to its other features, the unit includes two (2) composite ports designed for NTSC Closed Caption input.

Key Features

Customize a channel lineup from inserted local generated content

  • HDMI Ingest of Local Content
  • Internal File Store and Player – Up to 512 MB video file with looping player (per output channel)
  • NTSC Closed Caption input
  • QAM Modulates (2) HDMI inputs into (1) QAM channel
  • Encodes video to MPEG-2, H.264, or HEVC and audio to Dolby® Digital AC3 and AAC
  • IP output up to (2) SRT or Unicast/Multicast SPTS

Additional information

Weight 10 lbs
Dimensions 8.5 × 19.0 × 1.75 in

Product Downloads

Firmware Updates

Learn more about downloading the latest updates from our Firmware FTP

or subscribe to receive future
update notification emails.
