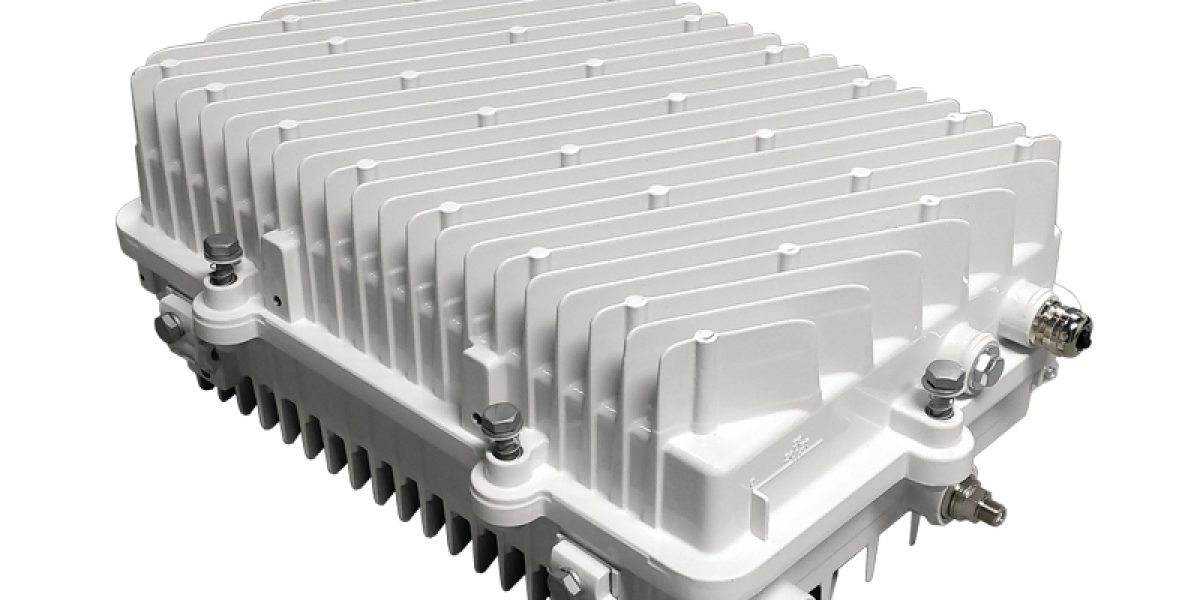

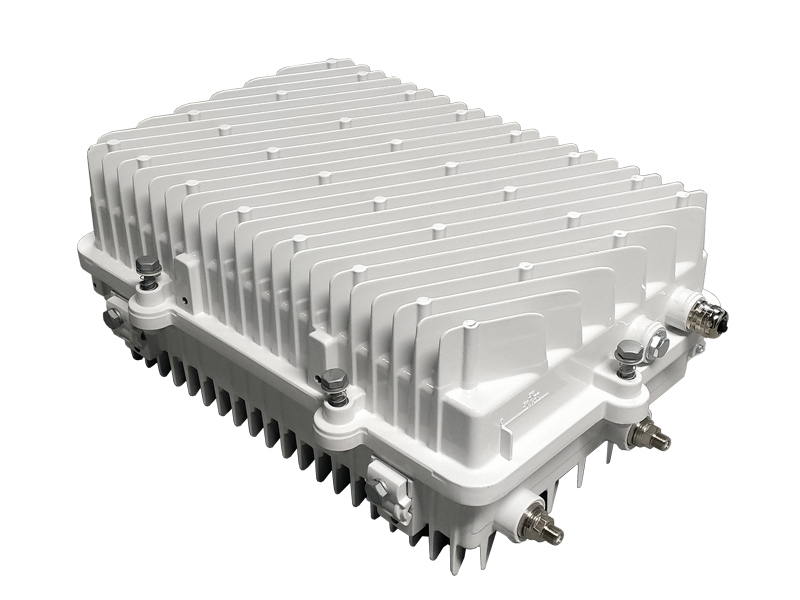

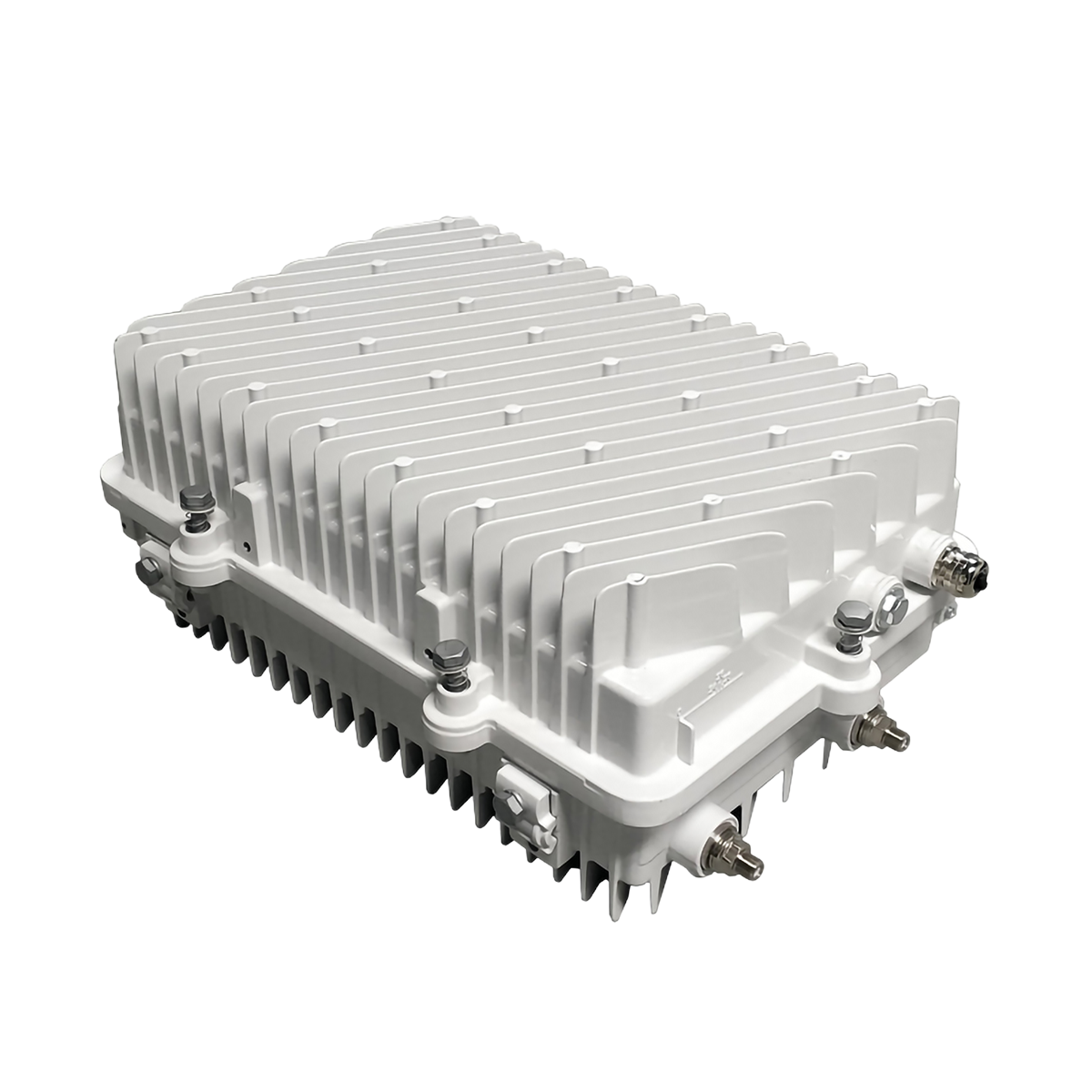

CMTS Field Edge 32
Field-Upgradable 32 Down / 8 Up CMTS, DOCSIS 3.0/2.0 Support
Coming Soon
Product Overview
The CMTS Field Edge is a best-in-class CMTS series built upon a stable and proven Linux operating system, and delivers the industry’s best performance, scalability, security, and reliability. It supports DOCSIS, EQAM, and Optical Receiver, which can satisfy applications including internet, voice, VoD, and CATV.
The CMTS Field Edge makes mounting simple and takes up minimal space. The unit supports multiple installations, including field, corridor, wall-mounted, and strand mounting.
Key Features
- DOCSIS/EuroDOCSIS 3.0/2.0 compatible
- Supports up to 32xDS
- 10Gbps+ throughput per fiber node
- Maximum downstream rate of 2 Gbps and upstream rate of 320 Mbps
- 512CM are recommended and supports up to 1000CM, no need to change optical node
- Supports CLI / Standalone Web / EMS / Mobile App, and other management modes
- DOCSIS module supports 10G Combo SFP+ Interface, GE/EPON/GPON and 10G EPON/XG(S)-PON/10GE uplink
- Power Module supports both local power and cable-based power
NOTE: To access the Manual, select the “HELP” icon located at the upper right corner of the user interface.
Additional information
Weight | 12 lbs |
---|---|
Dimensions | 11.8 × 19.0 × 1.75 in |
DOCSIS Support | 2.0, 3.0 |
Product Downloads
Firmware Updates
Learn more about downloading the latest updates from our Firmware FTP
or subscribe to receive future
update notification emails.
