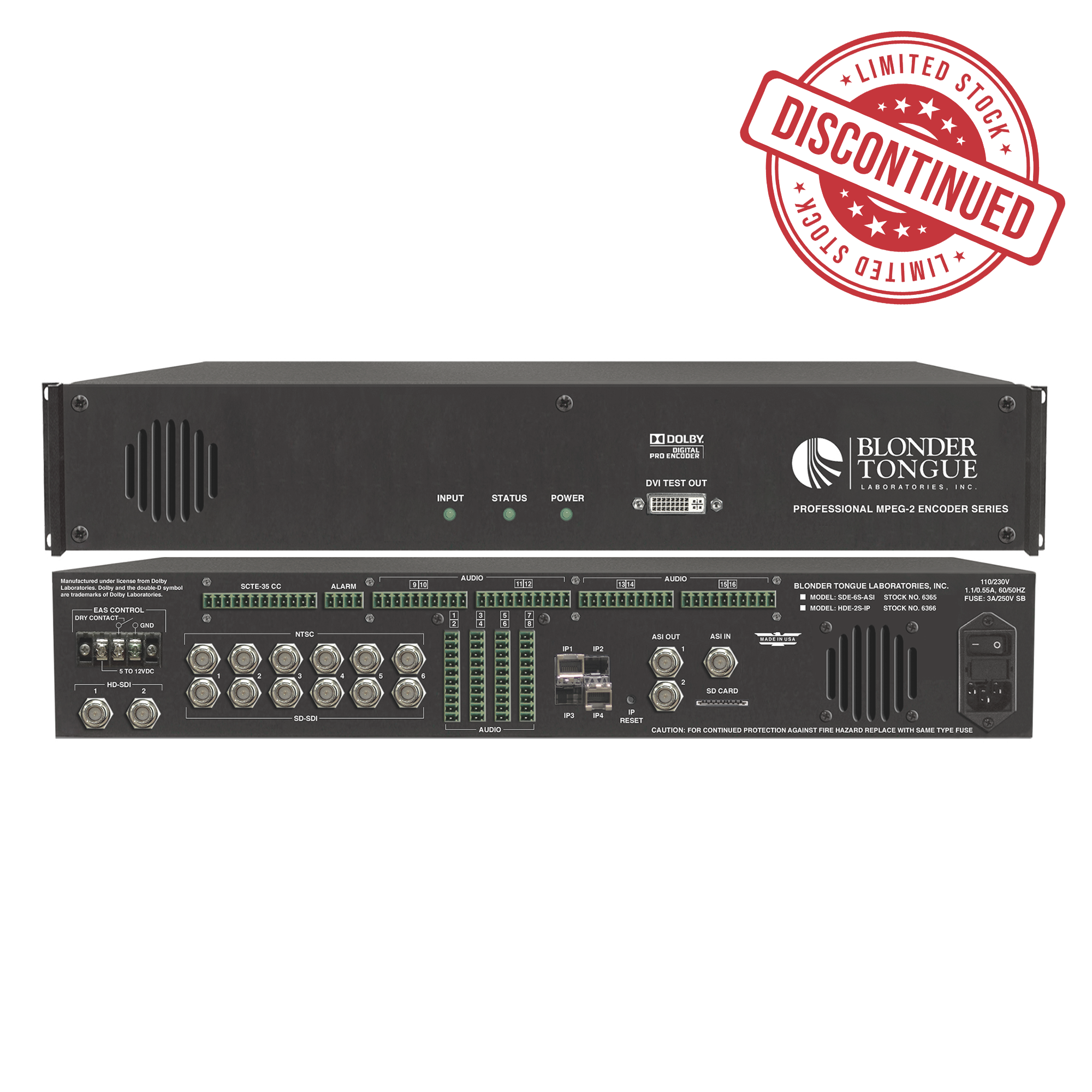

SDE-6S-ASI

MPEG-2 SD Encoder/Multiplexer

$9,544.00
SKU: 6365 Category: Tags: ,

Product Overview

The SDE-6S-ASI accepts up to six (6) SD programs from either 6xSD-SDI and/or 6xNTSC. MPEG-2 encoded outputs are multiplexed into one MPTS for delivering simultaneous output in 2xASI (mirrored), and 1xIP (100/1000Base-T).

Ad insertion SCTE-35 compliant queuing messages are detected for each program from either the multiple audio Cue Tone inputs or an insertion contact closure (operator selectable).

Key Features

  • Accepts up to (6) video programs from any of the following inputs: 6xSD-SDI and/or 6xNTSC
  • Simultaneously delivers the following outputs: 2xASI (mirrored) and 1xIP (100/1000 BaseT) via included SFP module
  • Provides audio encoding for Primary Audio, SAP (Secondary Audio Program), & Audio Descriptor Service
  • Provides user-selectable audio level adjustment of +/- 6 dB in 0.5 dB increments on all analog audio inputs through GUI interface
  • Detects ad messaging via SCTE 35 activated by either multiple Cue Tone Audio inputs or upon contact closures (user selectable)
  • Supports Closed Captioning EIA-608 and EIA-708
  • Supports Real-time Dolby® Digital audio encoding
  • Supports Emergency Alert System (EAS)
  • Supports user-defined static PSIP configuration
  • Supports compressed digital audio pass through for all SDI inputs
  • Supports fixed VBR and Stat-Mux video encoding

Additional information

Weight 17 lbs
Dimensions 16 × 19 × 3.5 in
