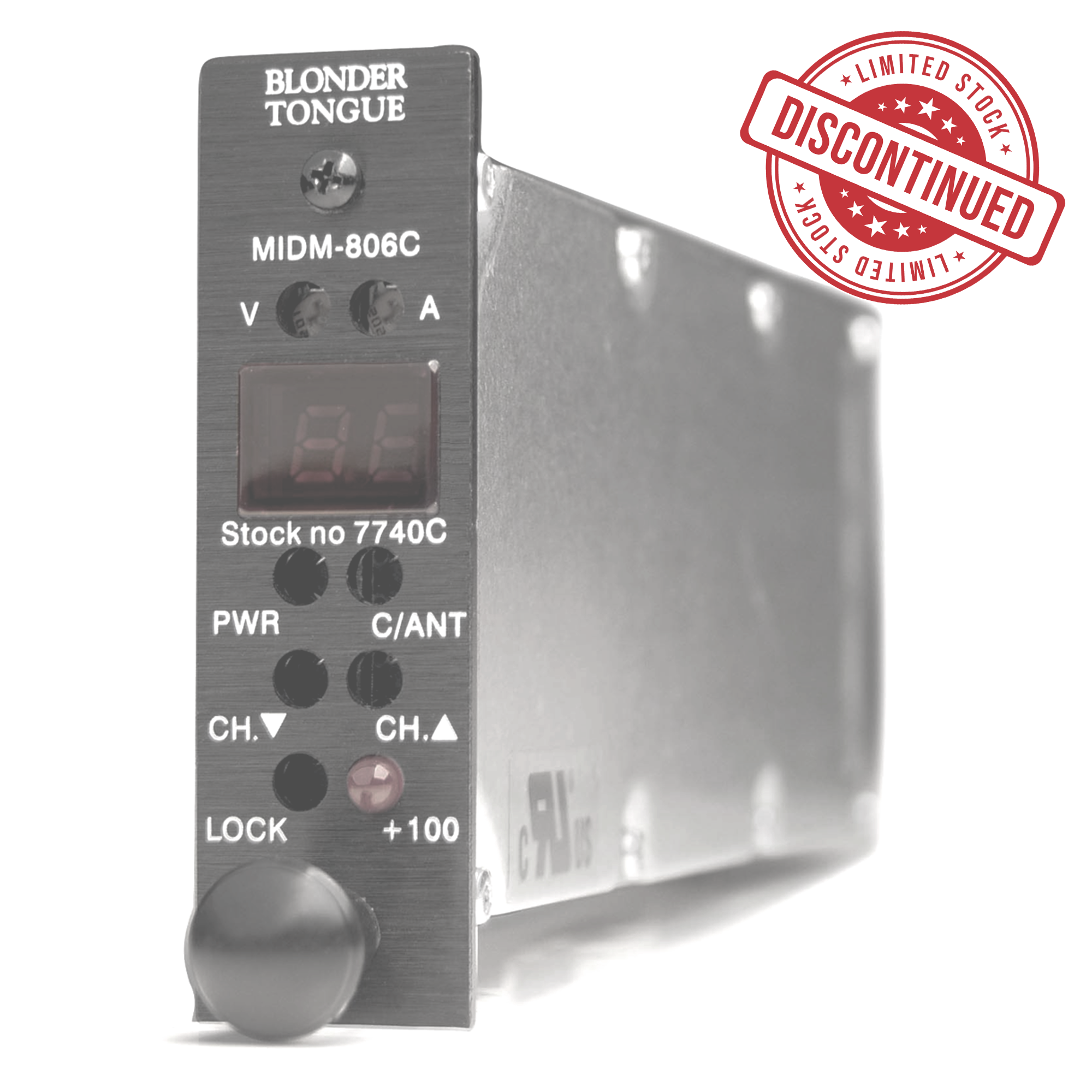

MIDM-806C

HE-12 Series Agile Audio/Video Demodulator

$164.00
SKU: 7740C Category: Tag:

Product Overview

The MIDM-860C is a professional quality agile audio/video demodulator and is intended for both CATV and VHF/UHF analog applications. The unit is in a “single width” Die-Cast housing that allows deployment of up to 12 demodulator units in a MIRC-12 chassis.

The MIDM-860C demodulates standard CATV, IRC, and HRC channels and is capable for “Cherry Picking” of CATV channels in preparation for remodulation. The input frequency range is agile, allowing the selection of any CATV channel from 54 to 806 MHz. Baseband audio and video are provided as outputs. It is ideal for off-air signal processing (audio/video processing and remodulation) applications. Baseband audio and video are provided as outputs.

The MIDM-860C features rock-solid phase lock loop (PLL) synthesized frequency control. Agile frequency selection is accomplished via front-panel channel up/down buttons with a LED channel readout for easy on-the-fly channel changes. A channel lockout mode is also provided to prevent accidental channel changes. Non-volatile memory maintains the programmed channel selection in case of power loss.

The MIDM is compatible with any modulators requiring a baseband input, and can be used in any combination with the MIPS-12C power supply and housed within a MIRC-12 chassis.

Key Features

  • Die-Cast Chassis offers superior protection against ingress or egress
  • Demodulates any channel 54-806 MHz
  • LED Display makes agile channel selection easy
  • Compatible with MICM-45 Modulator for a compact off-channel analog processor solution

Additional information

Weight 1 lbs
Dimensions 7.5 × 1 × 3.5 in
