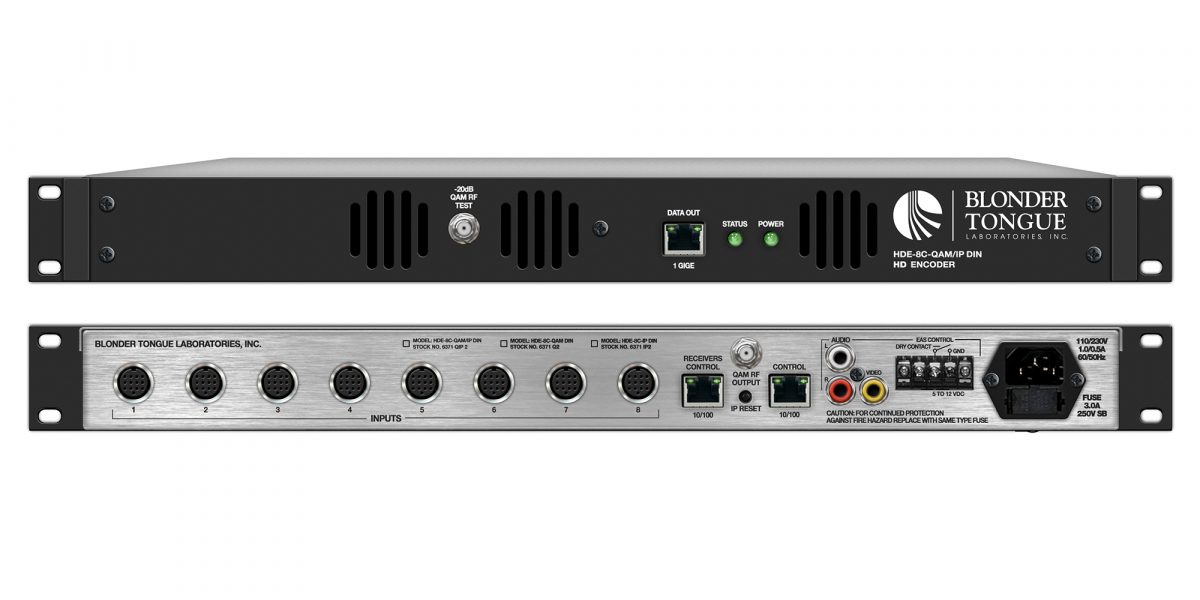

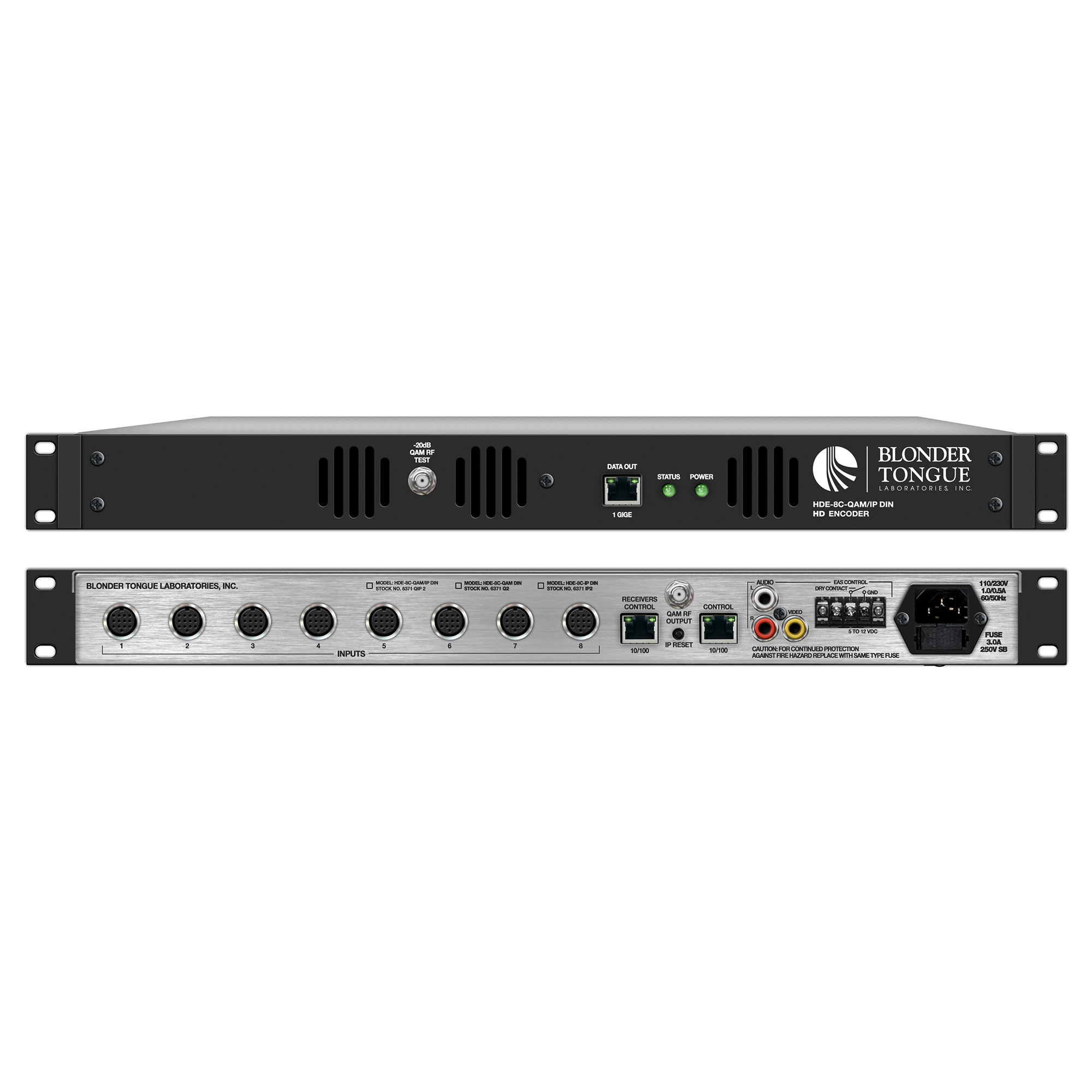

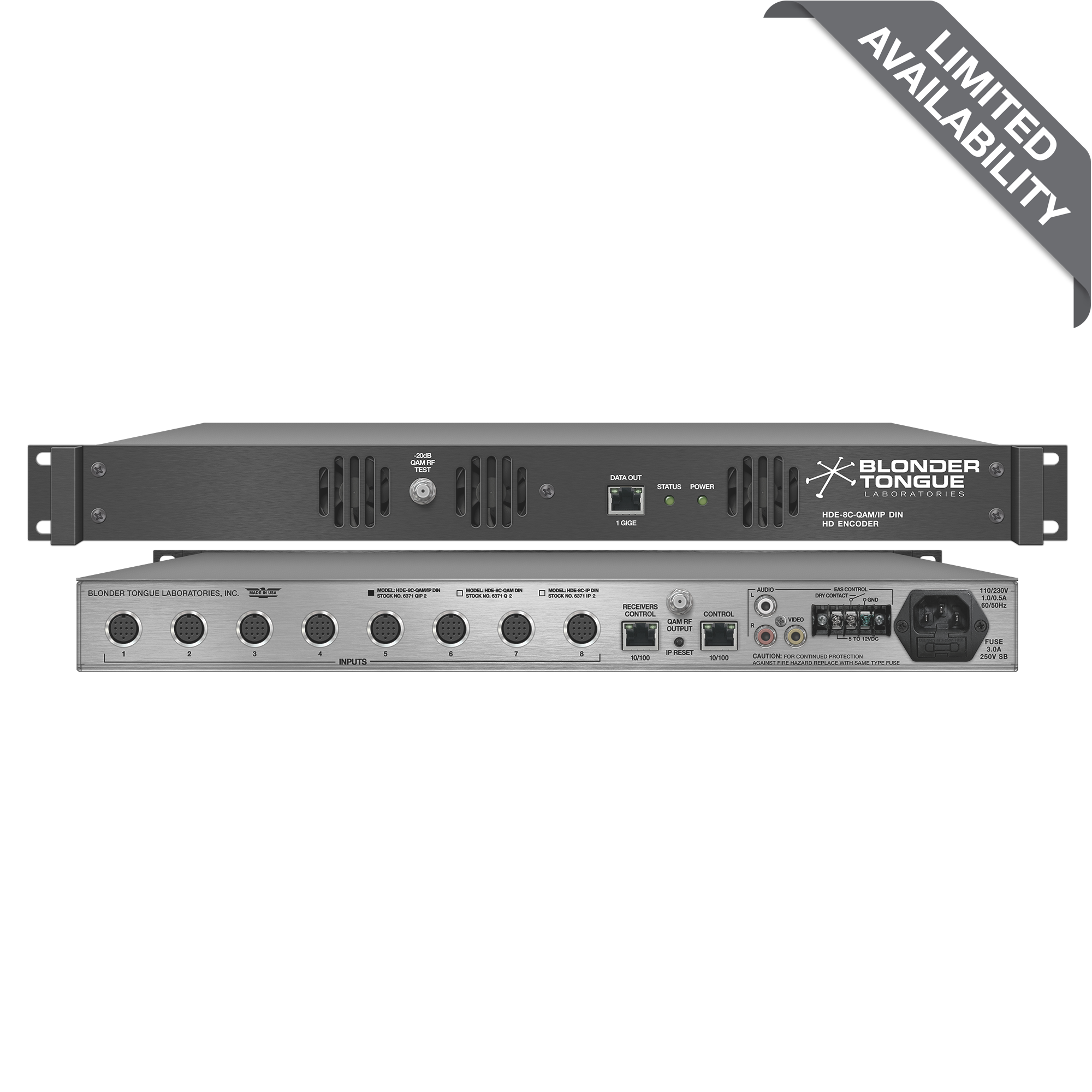

HDE-8C-QAM/IP DIN (OPT 2)

HDE-8C-QAM/IP DIN (OPT 2)

MPEG-2 HD Encoder for DIRECTV with DIN Cables

$5,608.00
SKU: 6371 QIP 2 Category: Tags: ,

Product Overview

The HDE-8C DIN (OPT 2) encoders are designed to be used with eight (8) DIRECTV H25 satellite receivers, or any non-H25 receiver source providing component/composite video outputs. The encoder digitizes and MPEG-2 encodes each input into a high-definition stream. The eight (8) program streams are multiplexed and then modulated onto four adjacent QAM channels in the 54-1002 MHz range (CATV 2-158).

The HDE-8C-QAM/IP DIN (OPT 2) encoder includes an IP output to provide 8xSPTS. The unit ships with a supply of eight (8) H258C DIN Cables to for eight (8) H25 receiver connections. The H258C DIN to RCA Cable can be ordered separately for Non-H25 receiver sources.

Key Features

  • Accepts 8 HD programs from DIN inputs
  • Digitizes, MPEG-2 encodes, and modulates up to 8 inputs into 4xQAM output channels (2 Programs per QAM Channel)
  • Configurable to ITU-T J.83 Annex A and B digital QAM formats
  • Provides a front-panel -20 dB RF test point
  • Provides 8xSPTS outputs on QAM/IP model
  • Supports user-defined PSIP configuration
  • Supports custom video and transport stream bit rate settings
  • Supports Real-time Dolby® Digital audio encoding
  • Supports Closed Captioning EIA-608 for each of the 8 encoded programs
  • Equipped with EAS interface (Analog Video + Left/Right Audio) and triggering, compatible with all EAS receivers
  • Provides comprehensive GUI-based monitoring and control via standard Web browsers

Additional information

Weight 15 lbs
Dimensions 16 × 19 × 1.75 in
