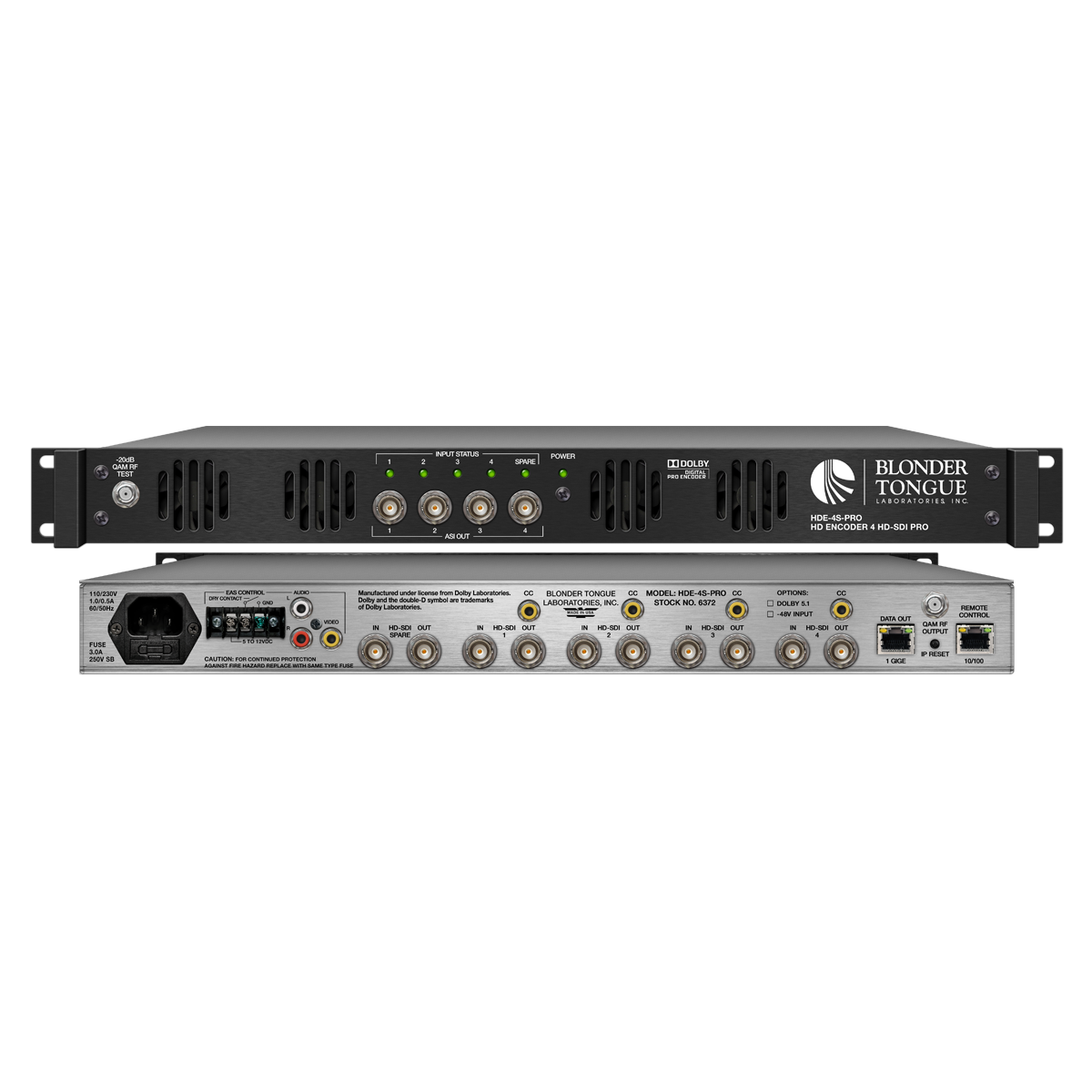

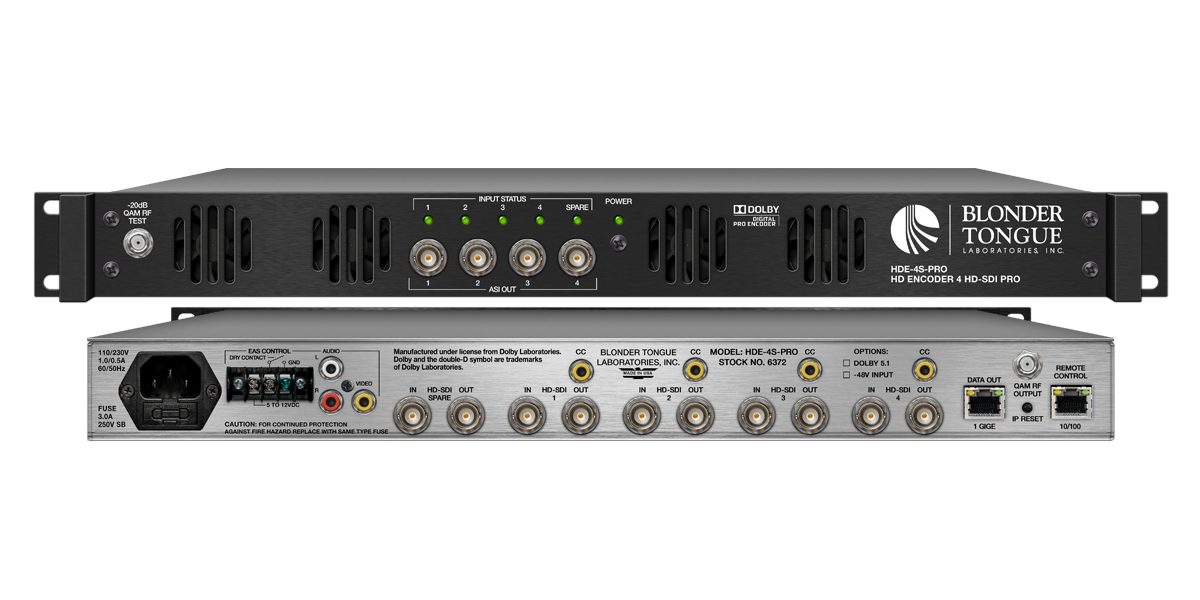

HDE-4S-PRO LL

Professional MPEG-2 HD Low Latency Encoder

$7,049.00
SKU: 6372 LL Category: Tags: ,

Product Overview

The HDE-4S-PRO LL (Low Latency) is specially designed to deliver superior motion optimization for programming, such as fast-paced live sporting events. The low latency feature significantly reduces the standard encoder operational time delay and will benefit all applications that encodes and distributes live programming on-site.

The unit accepts up to (4) HD programs from: 4xHD-SDI. The MPEG-2 encoded outputs are available in the following formats simultaneously: 4xQAM, 4xIP (1000Base-T Ethernet), and 4xASI. To improve transport efficiency, the encoder allows operators to assign (2) HD programs to a QAM output channel, and individually turn on/off each of the (4) adjacent QAM output channels.

Key Features

  • Accepts up to (4) programs; HD-SDI loop-thru for monitoring
  • Simultaneously delivers 4xQAM (adjacent), 4xIP (SPTS), 4xASI
  • 250 mSec Encoding Speed when operating in Low Latency mode
  • Supports real-time Dolby® Digital audio encoding
  • Supports user-defined PSIP configuration

Additional information

Weight 10 lbs
Dimensions 18.125 × 19 × 1.75 in

Product Downloads

Firmware Updates

Learn more about downloading the latest updates from our Firmware FTP

or subscribe to receive future
update notification emails.
