Drake PEG PLUS

Drake PEG PLUS

MPEG-2 or H.264 PEG Channel Encoder

$2,274.00
SKU: 1002613B Categories: , Tag:

Product Overview

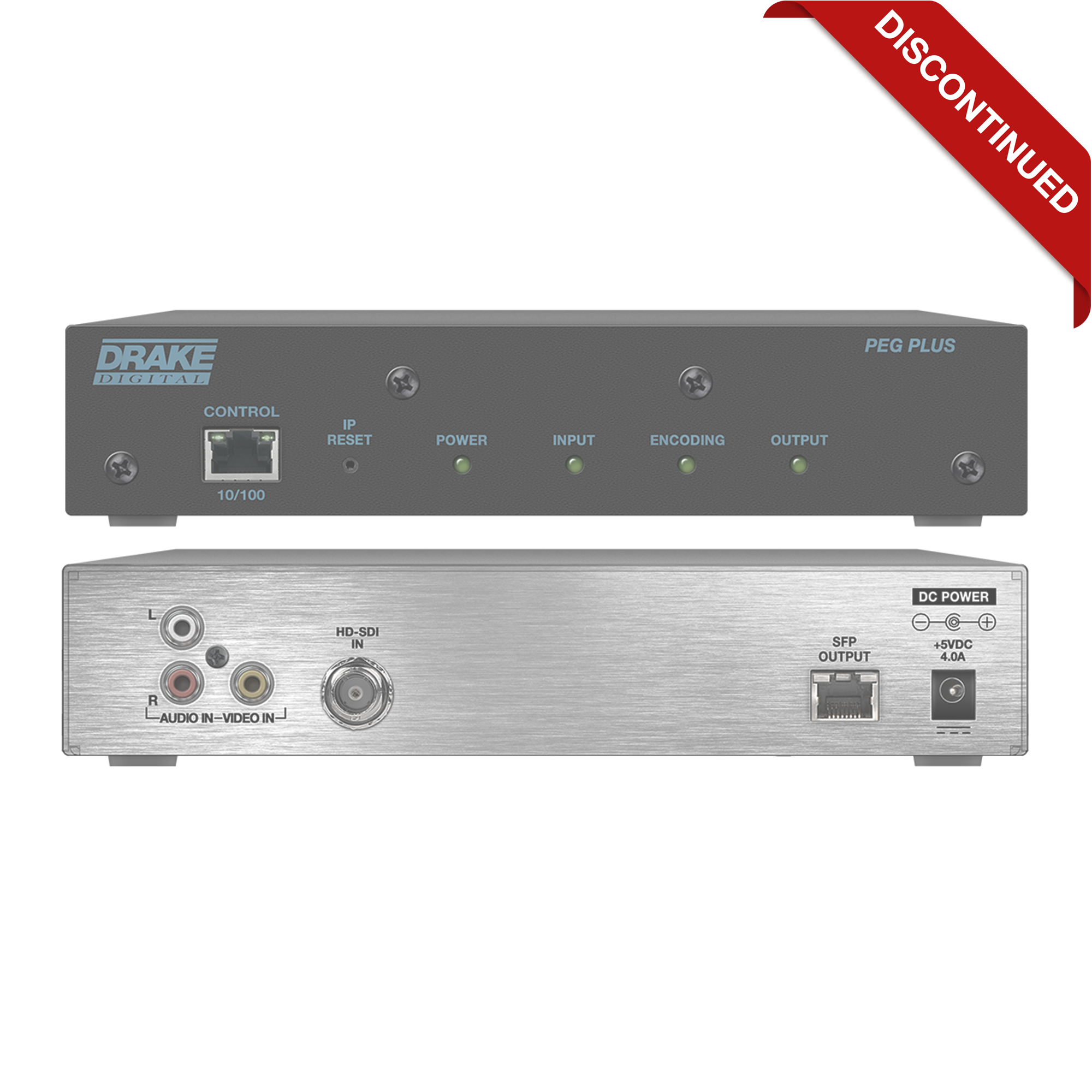

The Drake PEG PLUS is a stand-alone MPEG-2 or H.264 digital video PEG channel encoder with a single SD/HD-SDI, or composite video input, and an IP-encapsulation output via a single SFP Ethernet port. A separate RJ45 10/100 Ethernet port is provided for control and monitoring capability.

The Drake PEG PLUS features selectable SDI PCM-embedded audio, or analog left and right audio. Audio compression can be either Dolby® Digital, MPEG1-Layer 2 stereo, or AAC stereo.

Key Features

  • MPEG-2 or H.264 video encoding
  • Selectable SD/HD-SDI or Composite video input
  • Encodes two HD or SD streams of the same content in either MPEG-2 or MPEG-4/H.264 formats
  • Supports video resolutions of 480i, 720p, or 1080i
  • Dolby® Digital, AAC, or MPEG1-Layer 2 stereo audio encoding from PCM-embedded audio source
  • IP output via SFP port (SFP sold separately)
  • Unicast and multicast-capable
  • Separate Management port and streaming port

Additional information

Weight 1.5 lbs
