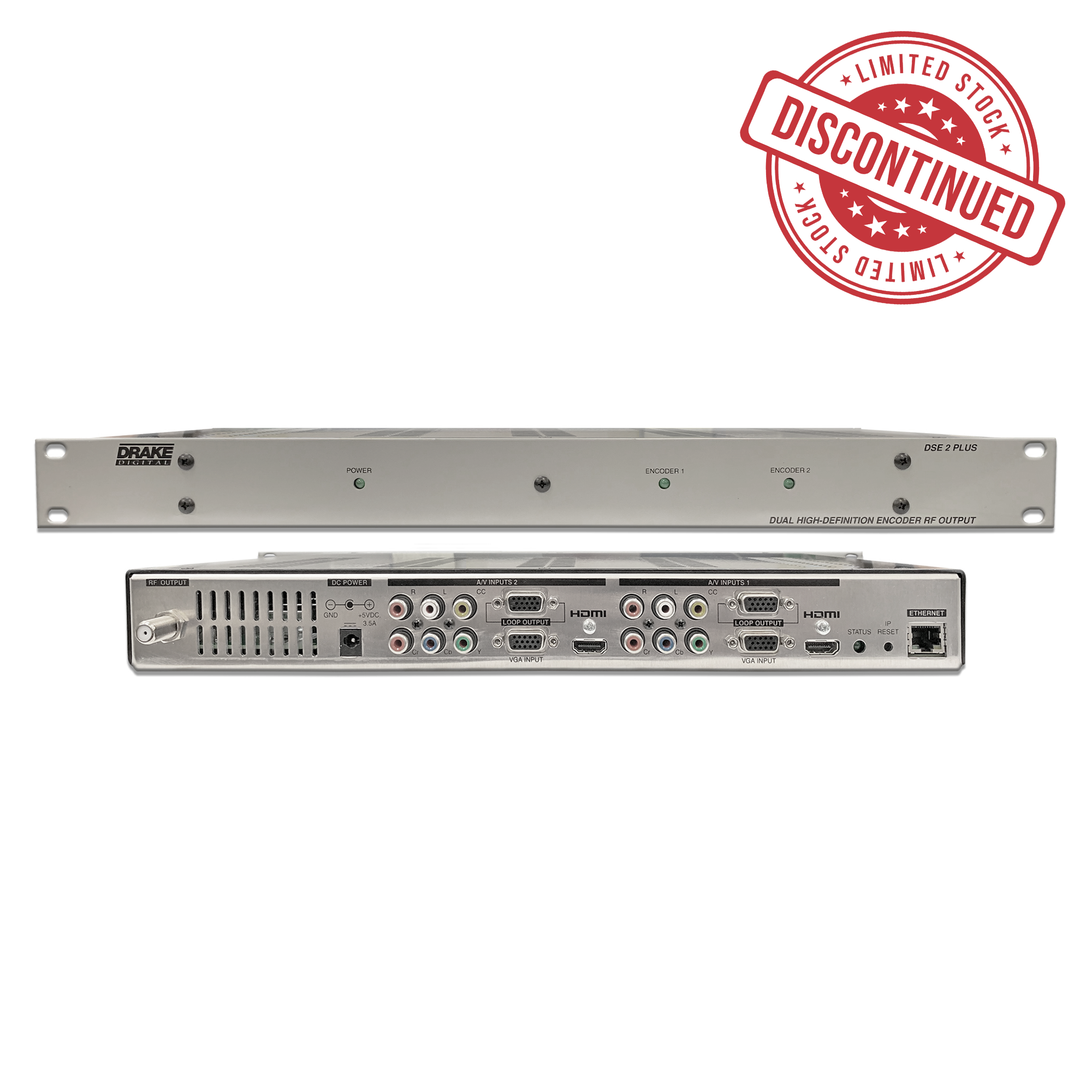

Drake DSE 2 PLUS

Drake DSE 2 PLUS

Dual HD Digital Signage Encoder

$2,590.00
SKU: 1002583 Categories: , Tags: ,

Product Overview

The Drake DSE 2 PLUS encodes up to two (2) uncompressed programs derived from devices with HDMI (nonHDCP), high-resolution Component video, VGA, or Composite outputs. The unit encodes the incoming programs to MPEG-2 or MPEG-4 / H.264 compressed video for a single multiplexed QAM output. An internal multiplexing QAM modulator and low-noise upconverter allow existing legacy fiber/coaxial networks to be used as distribution channels for digital signage content. This provides instant access to an extensive network of digital displays capable of viewing valuable ad-based or informational video in a vibrant high-definition format.

Key Features

  • Receives High-Resolution Component, VGA, or HDMI (non-HDCP) from two separate video sources
  • Digitally encodes to MPEG-2 or MPEG-4/H.264
  • Encodes to resolutions of 480i, 480p, 720p, or 1080i
  • Audio encoding to Dolby® Digital or MPEG1-Layer2
  • Supports Closed Captioning
  • GUI-based Remote Network Control and Monitoring
  • Desk Mount instead of Rack Mount available
  • 2-to-1 HD Program Encodes offer greater bandwidth efficiency
  • Single 1RU Rack Space chassis for economical footprint
  • MPEG-4/H.264 Compression for Lower Bit Rate Consumption
  • GUI-based Remote Control for Ease-of-Use

Additional information

Weight 6 lbs
Dimensions 10.5 × 19.0 × 2.0 in

Product Downloads

Firmware Updates

Learn more about downloading the latest updates from our Firmware FTP

or subscribe to receive future
update notification emails.
