IP Digital to RF Analog Synthesizer; 16 Channels

SKU: 6566A Category: Tag:

Product Overview

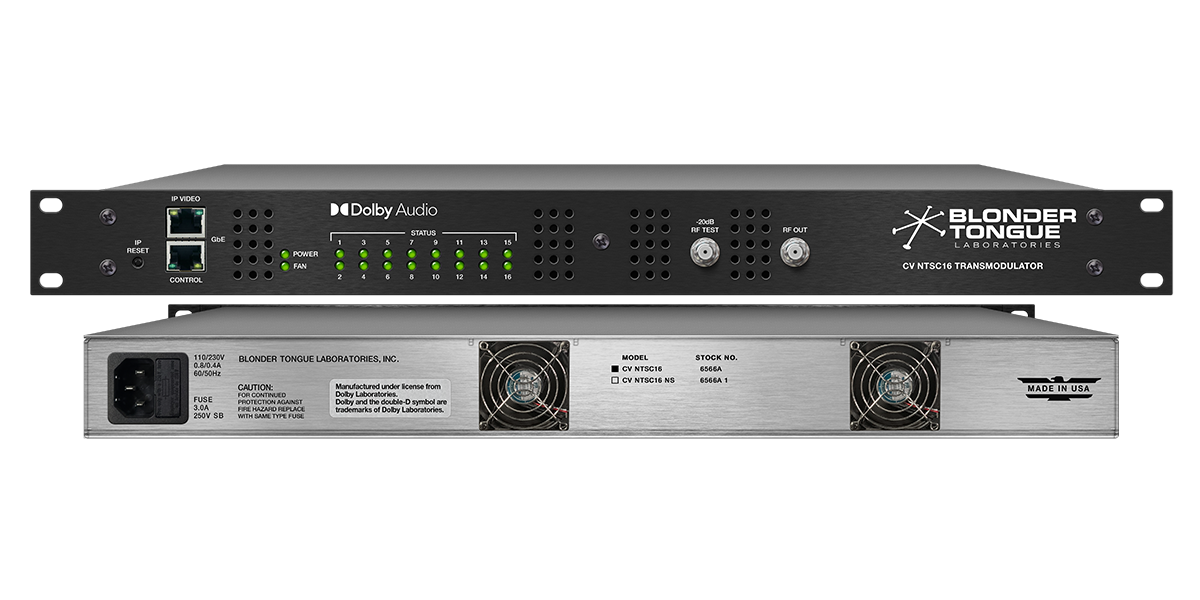

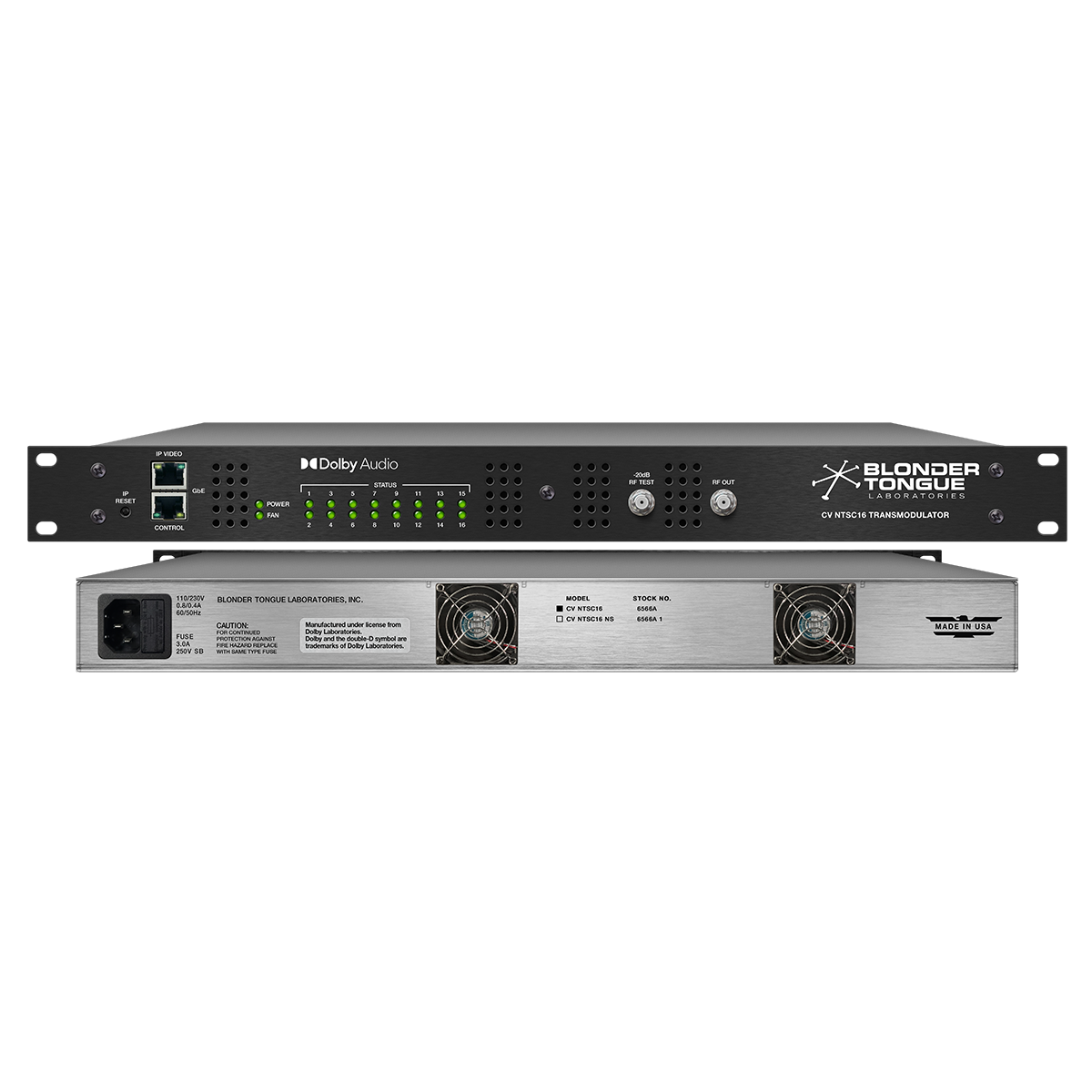

The CV NTSC16 Transmodulator is a cutting-edge 1RU, multi-channel digital to RF analog synthesizer, designed to convert up to 16 HD or SD programs and the primary audio channel to 16 NTSC modulated RF analog channels.

The CV NTSC16 Transmodulator can input MPEG-2, MPEG-4/H.264 (AVC), or H.265 (HEVC) formats from an IP transport stream. Each IP MPEG transport stream is decoded, NTSC synthesized, and modulated to an STD, IRC, or HFC RF analog channel. All 16 NTSC channels are agile within a 208 MHz frequency block. Users may place the 208 MHz block anywhere within the 54 to 1002 MHz frequency span.

Additional information

Weight 10 lbs
